Parking Lot Gates

Barrier Gate Operators / Ditec, Magnetic AutoControl and DoorKing ( DKS ) vehicle barrier gate operators for parking lots’ vehicle access control products. Parking garage Magstop Barrier Gate Operators, parking lot barrier gate operators, one-way access control, road traffic control systems.Competitive pricing on parking lot / garage barrier gate operators. We sell parking barrier gate operators at discount to apartment complexes, shopping center, malls, airports, military bases/installations, factories and businesses to protect parking lots, parking garages, employee, security, and public access, private and commercial property.



		Jeff, Managing Member



	Stacey, Sales

	(520) 303-4444



	GR8 Holdings LLC
	8340 N. Thornydale Rd. #110-160 Tucson, Arizona 85741
	CALL:(520)303-4444

SPARE PARTS

Controllers for Magnetic Autocontrol Barrier Gate Operators.

Call us for price quotes today.

MUB 3C-403 Multifunction logic controller for MSE3 with program 403 ......................................

MUB 4C-403 Multifunction logic controller, for MTS, MSV1 & MSV2............................................

MLC 11-U100 Magnetic Lane Controller (MLC) control unit for MIB20 ........................................

MLC 10-U100 Magnetic Lane Controller (MLC) control unit ........................................................

MLC 30-E100 24VDC I/O BOX, 6 INPUTS/7 OUTPUTS, I/O extension module ..............................

MLC 50-E100 RS232 com box, requires MLC30 I/O box ............................................................

1013.5036 MBE single board controller ..............................................................................

MBS-110A-C100 Controller for instant reverse feature on MBE series (requires part # 1031.5232) .....


		SPARE PARTS Loop Detectors for Magnetic Autocontrol Barrier Gate Operators. Call us for price quotes today.

DIN RAIL Mount MID1E-800 Single channel loop detector 24V DC, DIN RAIL Mount ........................................ MID2E-800 Dual channel loop detector 24V DC, DIN RAIL Mount ........................................... VEK M4D-A Four channel loop detector 24V DC, DIN RAIL Mount, Serial Communication .......... VEK S4 Four channel loop detector 24V DC, DIN RAIL Mount, Serial Communication ........ (Detects speed, direction, length and vehicle classification) 11-Pin Socket M1E-110 Single channel detector, with connection jack for diagnostic unit 110V AC ............ M1E-24 Single channel detector, with connection jack for diagnostic unit 24V DC ............. M1E-24AC Single channel detector, with connection jack for diagnostic unit 24V AC ............. M2E-220 Dual channel detector, with connection jack for diagnostic unit 240V AC ............ M1E-HARNESS Wire harness for Magnetic M1E 11-Pin detector .......................................... 0300.0016 11-Pin relay socket .......... ................................................................................. MWD BF-A Radar motion detector .................................................................................... Weather proof plastic housing whd = 15558132mm With directional modes for placing on opposing sides of doorways With the ability to usually determine between people & vehicles MWD RC Remote control for radar motion detector ............................................................. Plastic housing with push buttons This eliminates climbing up and down ladders to make adjustments CN1 4 input differential counting device .................................................................. Plastic case for DIN RAIL mounting 24 V AC or DC power supply...

	SPECIAL ACCESSORIES

1031.0051 Limit switch UL assembly .......................................................................................................................................

3460.0011 Two position switch (plastic) OPEN/CLOSE for guard operation .....................................................................................

3460.0012 Three position switch (plastic) OPEN/CLOSE/NORMAL .................................................................................................

3460.0014 Green push button switch ......................................................................................................................................

3460.0015 Red push button switch .........................................................................................................................................

9000.0001 3X6 sawcut 20 inductive sawcut loop - Each..............................................................................................................

1031.5666 Boom arm safety sensor - retroreflective photo beam set (transmitter mounted to barrier housing) ................................


		ARM ACCESSORIES

	3306.0011 M8 Nylon hex nut - Available in multiples of 100 pieces ........................................................ 1031.0090 Pendulum support hardware kit .......................................................................................... 1043.0138 Pendulum support for MSB 5N and 6N series ...................................................................... MAP 5N-110 Supporting pillar for MSV/MIB arms - RAL 2000 orange only - Each ...................................... MAP 5H-110 Supporting pillar with electro-mechanical arm lock for MSV/MIB barriers RAL 2000 - Each ....... MAP 6N-110 Supporting pillar for MTS arms - orange only RAL 2000 - Each ............................................. MAP 6H-110 Supporting pillar with electro-mechanical arm lock for MTS barriers RAL 2000 - Each .............. MMV1C-100 Control unit for mechanical arm lock ................................................................................. 1043.0163 Internal lock component .................................................................................................. 1043.0212 Aluminum skirt for MIB 30/40 Maximum 3.5/4.0 meters - Per Meter .................................... 1043.0213 Aluminum skirt for MTS 6/8 Maximum 6.0/8.0 meters - Per Meter ........................................ 1052.0016 1 signal lamp 24V for MSB 5N* arm, 100mm dia.(Orange Lens) ....................................... 1052.6463 1 signal lamp 24V for MSB 6N* arm, 100mm dia.(Orange Lens) ....................................... MSS1C-100 Control unit for 3 signal lamps (# 1052.0016) at maximum ................................................. 1052.5010 1 Set of 2 LED signal lights w/ blunt cut, Red (one per side of boom arm) ............................ MSS1F-500 LED signal controller (Continuous Flash) and power supply .................................................. 1031.5011 24 LED signal continuos ON/OFF in up position with power supply and inductive limit switch kit ......

		ACCESSORIES

1006.0005 Capacitor 12 μF ......................................................................................................................................................

1006.0030 Capacitor 20 μF .....................................................................................................................................................

2036.0022 MIB 20/30/35 - half strength spring - per spring - Each................................................................................................

2036.0021 MIB 40 - full strength spring - per spring - Each .........................................................................................................

3004.0001 Rubber end stop - MIB series - Each ...........................................................................................................................

3004.0004 Rubber end stop - MBE series - Each ..........................................................................................................................

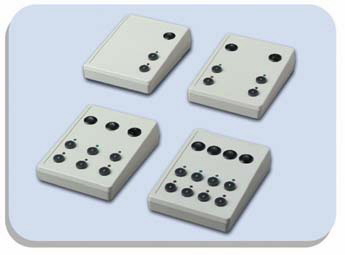

	CONTROL PANELS

MKI 6P-175 Desk panel for one MLC/MUB ...........................................................

MKI 6P-275 Desk panel for two MLC/MUB ...........................................................

MKI 6P-375 Desk panel for three MLC/MUB .........................................................

MKI 6P-475 Desk panel for four MLC/MUB ...........................................................

FEATURES: Allows the gate to function as:

1. Permanently opened

2. Dead man operation

3. Pulse sequence OPEN/CLOSE with one button

4. Pulse operation OPEN/CLOSE with two separate buttons

5. Automatic operation

When the controller is set to the appropriate mode

LED's indicate direction of barrier arm (open = green, red = close)


	DRIVE UNITS

MIB 20 SERIES

BDU20*-C900 Drive unit corresponds to MIB 20-C920 ........................................

Opening/closing time 0.9 seconds - Max arm length 10’

Aluminum round arm only # MSB 4B-030 - Adjusted to desired arm length

Maximum arm length auto open on power failure 8'

MIB 30 SERIES

BDU30*-C900 Drive unit corresponds to MIB 30-C920 .......................................

Opening/closing time 1.4 seconds - Max arm length is 12’

Adjusted to desired arm length

Maximum arm length auto open on power failure 10’

MIB 40 SERIES

BDU40*-C900 Drive unit corresponds to MIB 40-C920 .......................................

Opening/closing time 4.0 seconds - Max arm length is 20’

Adjusted to desired arm length

Maximum arm length auto open on power failure 15’


	MOTORS

MC43C-370 Torque motor corresponds to MSV 3 barrier 65 W 1.8 sec ........................................................................................

MC63C-270 Torque motor corresponds to MBE 35 and MSE 3 barrier 45 W 2.3 - 2.8 sec ...............................................................

MC63C-275 Torque motor corresponds to MBE 50 barrier 45 W 4.6 - 4.9 sec...............................................................................

MC83C-380 Torque motor corresponds to MSV 4 barrier 72 W 3.5 sec ........................................................................................

MC83C-390 Torque motor corresponds to MSV 5 barrier 72 W 7.5 sec ........................................................................................

SAM210-24 Torque motor corresponds to MTS 6 barrier 280 W 6.5 sec - Each ...........................................................................

SAM210-34 Torque motor corresponds to MTS 8 barrier 280 W 8.5 sec - Each ...........................................................................
